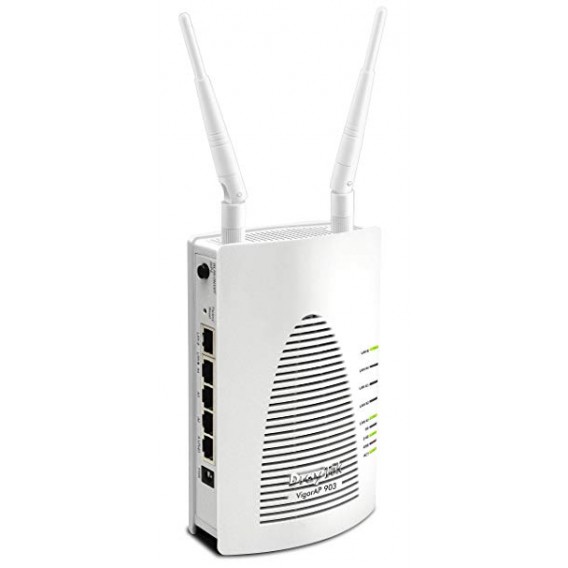

Draytek VigorAP 903 access point

  • BrandsMERCUSYS
  • Product Code: Draytek VigorAP 903
  • Availability: In Stock
Interface

LAN Port

5x Gigabit Ethernet (1 PoE)

USB Port

1x USB 2.0

Antenna

2x Dual-Band SMA Detachable
Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz

Button

1x Factory Reset
1x Wireless On/Off/WPS
1x Power On/Off
Capacity

2.4GHz Peak Speed

400 Mbps

5GHz Peak Speed

867 Mbps

Max. Number of Connective Clients

128 (64 per radio band)
WLAN

2.4GHz Standard

IEEE 802.11b/g/n

5GHz Standard

IEEE 802.11a/n/ac Wave 2

MIMO

2x2 MU-MIMO (2-stream)

Operating Mode

AP, Mesh, Range Exntender

Fast Roamding (WPA2/802.1x)

yes

AP-Assisted Roaming

yes

AirTime Fairness

yes

Band Steering

yes

Max. Number of SSID

8 (4 per radio band)

Authentication

Pre-Shared Key, 802.1x

WPS

Yes

Client Isolation

Yes

Access Control List

Yes

Bandwidth Limit per Client

Yes

Client Numer Limit

Per radio, Per SSID

Connection Time Control

Yes

Mobile Device Management

Yes

WMM

Yes
Application

Built-in RADIUS Server

Yes

RADIUS Proxy

PEAP, EAP-TLS

DHCP

DHCP Server, DHCP, Client, DHCP Relay Agent

Static IP

Yes

MAC Clone

Yes

802.1q VLAN

Yes

Schedule

Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management

Local Service

HTTP, HTTPS, Telnet

Configuration

Stand Alone, TR-069 (VigorACS), Vigor Router APM

Tools

Speed Test, AP Discovery, Statistics

Syslog

Yes

SNMP

v2, v2c, v3

Managed by VigorACS

Yes
Physical

Environment

Indoor

Mounting

Wall Mount, Desktop

Power Method

DC, 802.3at PoE

Max. Power Consumption

18 watts

Dimension

168mm x 108mm x 45mm

Weight

360g

Operating Temperature

0 to 45°C

Storage Temperature

-25 to 70°C

Operating Humidity

10 to 90% non-condensing
