Engenius EnTurbo 11ac Wave 2 Indoor Wireless AP w/ High-Gain Antennas EAP1300EXT

Turbocharged WiFi

Introducing EnTurbo, the next generation of enhanced 11ac Wave 2 access points and bridges that turbocharge wireless performance for small and mid-size businesses.

EnTurbo expands on the legacy of EnGenius’ top selling EAP/ENS/EnStation Series, a favorite network staple among small and mid-size organizations. Experience the next generation of wireless speed, coverage, and reliability you have come to expect from EnGenius.

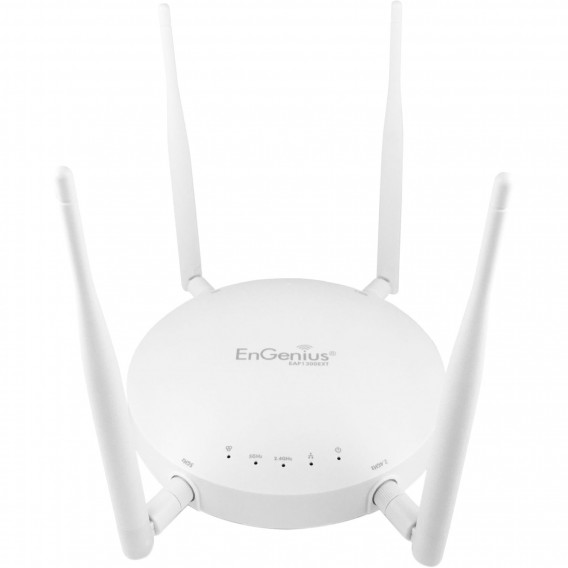

EnGenius EnTurbo™ EAP1300EXT 11ac Wave 2, Quad-Core Processor, Wireless Access Point with High-Gain antennas turbocharges wireless speeds, increases device capacity, and improves connection reliability.

Turbocharged Performance

EnTurbo’s powerful Qualcomm 717 MHz quad-core processor turbocharges wireless performance and efficiency. Boost speeds up to 30 percent faster than 11ac Wave 1 3x3 access points.

Maximized Speed & Performance

11ac Wave 2 technology maximizes wireless speed to eliminate network lag ensuring top-notch network performance. Robust point-to-point 802.11AC wireless performance of up to 867 Mbps on the 5 GHz frequency band creates a dependable network across great distances.

EAP1300EXT features 23 dBm output power on 2.4 GHz and 5 GHz and high receive sensitivity, coupled with embedded high-gain omni-directional antennas to deliver stable robust connectivity.

More User Capacities

Multi-User (MU) MIMO sends dedicated wireless streams to multiple user devices at the same time, improving your network’s efficiency.

Improved Signal Connection Reliability

EAP1300EXT optimize wireless signals for enhanced reliability, boosted reception and uninterrupted connectivity for users as they move around the network with standards-based roaming and Beamforming Antenna technology.

Stylish, Low Profile Hardware Design

Clean lines and low profile housings ensure EnTurbo Access Points and Bridges will blend into even the most elegant settings for indoors.

ezMaster Network Management Software

Monitor, manage and receive alerts. Add the power of network management when you need it with ezMaster. This free, easy-to-use tool is perfect for gaining insight into your EnTurbo network. Get under the hood with real-time monitoring, rich reporting and analytics, and more all with no license or subscription fees.

Streamlined AP Management

Deploying and managing access points is easy through ezMaster’s intuitive tools. Group APs for quick setup, configuration, and monitoring, and view network traffic from the at-a-glance dashboard.

Rich Reporting & Analytics

A wealth of invaluable reporting, analytics, and real-time monitoring tools give you instant insight into system performance and issues. Pinpoint and address potential problems before they affect users.

Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE802.11a/n/ac on 5 GHz

Processor
Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7

Antenna
2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Detachable Omni-Directional Antenna
SMA-Type
Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1 x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter

Maximum Power Consumption
9W

Surge Protection
0.5KV

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
Access Point Mode (AP mode)
WDS: WDS AP, WDS Bridge

Frequency Radio
2.4 GHz: 2400 MHz ~ 2472 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
2.4GHz - Two (2) Spatial Stream SU-MIMO up to 400 Mbps to individual 2x2
VHT40 client devices (300 Mbps for HT40 802.11n client devices)
5GHz - Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual 2x2
VHT40 client devices

MU-MIMO
5GHz - Two (2) Spatial Stream Multi User (MU) MIMO for up to 867Mbps to
two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams

Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU

Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management

Multiple BSSID
Supports 16 SSIDs (8 SSIDs per Band)

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II
Private MIB

Management Features

Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster & Neutron Switch)

Stand-Alone Management Features
Auto Channel Selection
