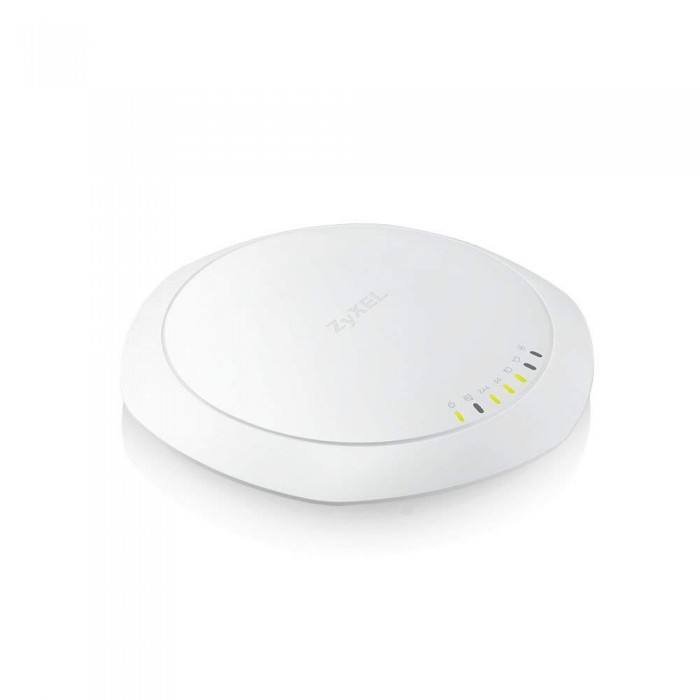

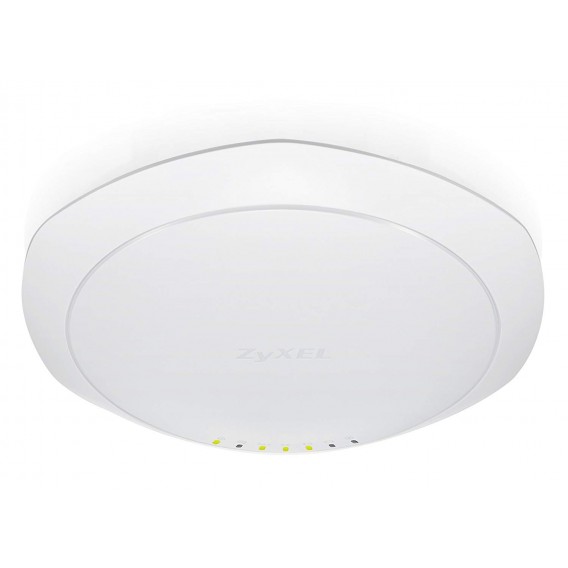

ZyXEL WAC6103D-I Radio Access Point

  • Product Code: ZyXEL WAC6103D-I
  • Availability: In Stock

ZyXEL WAC6103D-I Radio Access Point - 802.11a44;B44;G44;N44;Ac - Dual Band

ZyXELs WAC6103D - I is a high - performance 3 - stream 802.11ac Wi - Fi AP featuring fast speeds of up to 1.75 Gbps with the dualoptimized antenna design. Via this advanced adjustable antenna setting the WAC6103D - I provides the optimal signal coverage fitting for either ceiling - mount or wall - mount deployments. Its stylish slim industrial design perfectly blends into decorations.Features. Advanced Gigabit Wi - Fi performance with the dual - optimized antenna. Slim and stylish outlook aesthetics blends into environments. Streamlined deployment tools save valuable time. ZyXEL One Network experience. Optimized wireless experience with advanced feature settings

Enterprise class 3x3 802.11ac AP supports combined data rates of up to 1.75 Gbps “Dual-optimized antenna” allows pattern optimization adapting to wall- or ceilingmount installations Dynamic Channel Selection, Load Balancing and Smart Client Steering ensure optimal wireless experience Stylish, ultra-slim ID design as the 32 mm height blends perfectly into modern interior decorations APFlexTM and Zyxel One Network utilities make deployment simple and fast

Dual-optimized Antenna The unprecedented Dual-optimized Antenna is an adjustable internal antenna with “just fit” pattern options optimized for wall- or ceiling-mount that the installation technician can instantly change the antenna pattern simply via the physical antenna switch without booting the device. If needed, administrators can base on their knowhow to perform granular signal optimization per floor plan via software configuration remotely. With the flexibility, the WAC6103D-I can fit for wall-mount or ceiling-mount deployment without the hassles of antenna accessory selection and signal coverage adjustment. Traditional (Side View) Dual-optimized (Side View) Pattern for wall-mount (H-plane, side view) Pattern for wall-mount (H-plane, side view) Interference Interference Traditional (Side View) Dual-optimized (Side View) Pattern for wall-mount (H-plane, side view) Pattern for wall-mount (H-plane, side view) Interference Interference Traditional (Top View) Dual-optimized (Top View) Pattern for wall-mount (E-plane, top view) Pattern for wall-mount (E-plane, top view) Traditional (Top View) Dual-optimized (Top View) Pattern for wall-mount (E-plane, top view) Pattern for wall-mount (E-plane, top view) Pattern for wall-mount (E-plane, top view) Pattern for wall-mount (H-plane, side view) Pattern for wall-mount (E-plane, top view)

Model WAC6103D-I Product name 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point Main Design Wireless frequency 2.4 and 5 GHz Radio 2 RF Specifications Frequency band 2.4 GHz (IEEE 802.11 b/g/n) • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz • Taiwan (TW): 2.412 to 2.462 GHz 5 GHz (IEEE 802.11 a/n/ac) • USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz • Taiwan (TW): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz 802.11n/ac premium features • 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams • Maximal Ratio Combining (MRC) • 20-, 40- and 80-MHz channels • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) • Cyclic Delay diversity (CSD) support • Maximum Likelihood Demodulation (MLD) support • Low Density Parity Check (LDPC) support Conducted typical transmit output power (dBm) FCC 11b/g 28 FCC 11g/n 28 FCC 11a 28 FCC 11n/a (ac) 28 EU 11b/g 20 EU 11g/n 20 EU 11a 21 EU 11n/a (ac) 26 Antenna system Dual-optimized internal antenna Antenna gain • Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi • Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi Support data rate • 802.11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps • 802.11b: 1, 2, 5.5 and 11 Mbps • 802.11n: up to 450 Mbps in MCS23 (40 MHz) • 802.11ac: up to 1300 Mbps in MCS9 (80 MHz) Receive sensitivity Min. Rx sensitivity to -102 dBm
