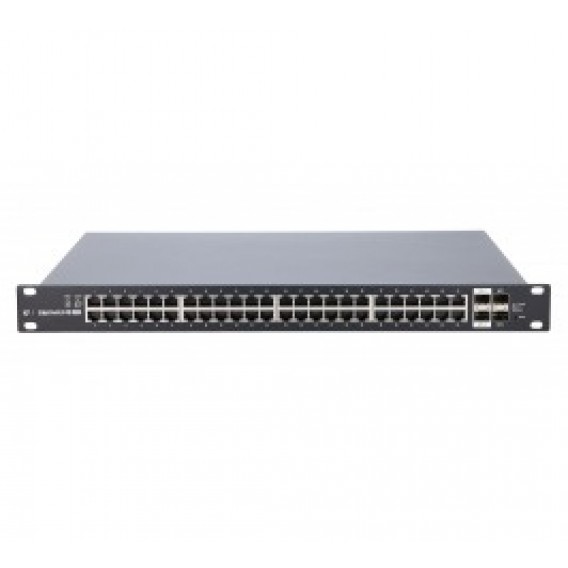

UBIQUITI ES-48-500W EDGEMAX EDGESWITCH

  • Product Code: UBIQUITI ES-48-500W
  • Availability: In Stock

The Ubiquiti EdgeSwitch 48 500W delivers robust performance and intelligent switching for growing networks. The EdgeSwitch is a fully managed, PoE+ Gigabit switch and offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.The Ubiquiti EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Technical Specifications

  • Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")
  • Weight 5.3 kg (11.68 lb)
  • Total Non-Blocking Throughput 70 Gbps
  • Max. Power Consumption?ES-48-500W?ES-48-750W?500W?750W
  • Power Method 100-240VAC/50-60 Hz, Universal Input
  • Power Supply?ES-48-500W?ES-48-750W?AC/DC, Internal, 500W DC?AC/DC, Internal, 750W DC
  • LEDs Per Port?RJ45 Data Ports?SFP+/SFP Data Ports?PoE, Speed/Link/Activity?Speed/Link/Activity
  • Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports?(2) 1/10 Gbps SFP+ Ethernet Ports?(2) 1 Gbps SFP Ethernet Ports
  • Management Interface Ethernet In/Out Band
  • Certifications CE, FCC, IC
  • Rackmount Yes, 1U High
  • ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature -5 to 40° C (23 to 104° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Shock and Vibration ETSI300-019-1.4 Standard
  • PoE Per PortPoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)?24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3at Mode 50–57V
  • Max. Passive PoE Wattage per Port 17W
  • 24V Passive PoE Voltage Range 20-27V
